Most crawler owners pick a tire by looking at the tread photo and reading the compound name, then bolt it on with whatever foam happens to be in the box. That gets you halfway there. The tread decides how much rubber touches the rock and how the tire clears mud, but the foam insert decides whether that tread holds its shape when you actually load it on a side hill or a ledge. A soft compound tire on the wrong insert folds and squirms exactly like a cheap tire does. This guide walks through compound, size, tread pattern, and insert pairing in the order that actually matters, and links to the specific tires and inserts worth buying for SCX10, TRX-4, and Wraith platforms.
Quick answer
The Pro-Line Hyrax 1.9 G8 is the benchmark crawler tire compound, but tread alone will not fix a folding sidewall. Pair a soft tire with a firm insert like the Pro-Line Closed Cell Foam Inserts 1.9, match bead diameter to your platform, and add Injora Brass Inner Clamp Rings to lower the center of gravity.
This guide contains affiliate links. CrawlKin may earn a commission at no cost to you.
What tire compound actually matters for rock crawling?
The Pro-Line Hyrax 1.9 G8 uses Pro-Line's G8 rubber compound, a mid-firm all-purpose blend that grips rock faces without squirming on hardpack, and it is the compound most rock crawlers reach for before trying anything softer or harder. G8 sits in the middle of the compound range: soft enough to deform over small rock edges, firm enough that the tread does not roll under itself on flat rock.
The INJORA King Trekker 1.9 Crawler Tires S5 Compound (pair) runs a softer S5 compound at a noticeably lower price. S5 grips wet rock and loose dirt well, but it wears faster and has less community track record over many sessions than Pro-Line's G8. It is the right pick for a budget-conscious build where the tire is not the last upgrade you plan to buy.
The RC4WD Interco Super Swamper TSL Bogger 1.9 Scale Tires (pair) uses RC4WD's X3 compound in a licensed Interco Super Swamper tread. It is a softer rubber than G8, but the reinforced sidewall built for scale accuracy flexes less than an open-carcass comp tire, so the compound alone does not tell the whole story. Whatever compound you land on, the foam insert underneath changes how that compound behaves under load, which is the point of this guide.
Pro-Line Hyrax 1.9 G8 Rock Crawling Tires (pair)
The default benchmark for 1.9 inch rock crawling. Open tread with deep sipes and G8 compound that grips rock faces without the squirm of pure competition rubber.
INJORA King Trekker 1.9 Crawler Tires S5 Compound (pair)
INJORA's S5 super-soft compound in an all-terrain tread with multi-curve siping for grip on loose dirt and slippery rock faces. A strong value import option.
RC4WD Interco Super Swamper TSL Bogger 1.9 Scale Tires (pair)
Licensed replica of the full-size Super Swamper Bogger in X3 soft compound. The tallest tire in the 1.9 class and a scale showpiece as much as a performance option.
What size tire fits an SCX10, TRX-4, or Wraith?
Tire size on a 1/10 crawler comes down to bead diameter and wheel class, not just how big the tire looks in photos, and Pro-Line sells the Hyrax in two sizes for exactly this reason: the Pro-Line Hyrax 1.9 G8 Rock Crawling Tires (pair) for 1.9 inch wheels on SCX10 and TRX-4 platforms, and the Pro-Line Hyrax 2.2 G8 Rock Crawling Tires (pair) for 2.2 inch wheels on Wraith and RR10 Bomber builds.
A 1.9 tire will not mount on a 2.2 bead lock wheel and vice versa, so confirm your wheel size before ordering either tire or insert. The 2.2 class also runs a wider track and a taller stance, so a 2.2 Hyrax adds real ground clearance on a Wraith that a 1.9 tire cannot match on the same platform.
Foam inserts follow the same rule. An insert sized for a 1.9 bead diameter will not properly fill a 2.2 tire carcass, and a loose-fitting insert defeats the point of adding one at all. Buy the insert sized to the tire you actually own, not the tire you plan to buy later.
Pro-Line Hyrax 1.9 G8 Rock Crawling Tires (pair)
The default benchmark for 1.9 inch rock crawling. Open tread with deep sipes and G8 compound that grips rock faces without the squirm of pure competition rubber.
Pro-Line Hyrax 2.2 G8 Rock Crawling Tires (pair)
The 2.2 class version of the benchmark Hyrax, sized for Axial Wraith, RR10 Bomber, and custom builds. Same G8 compound, bigger footprint.
Why does the foam insert matter as much as the tread?

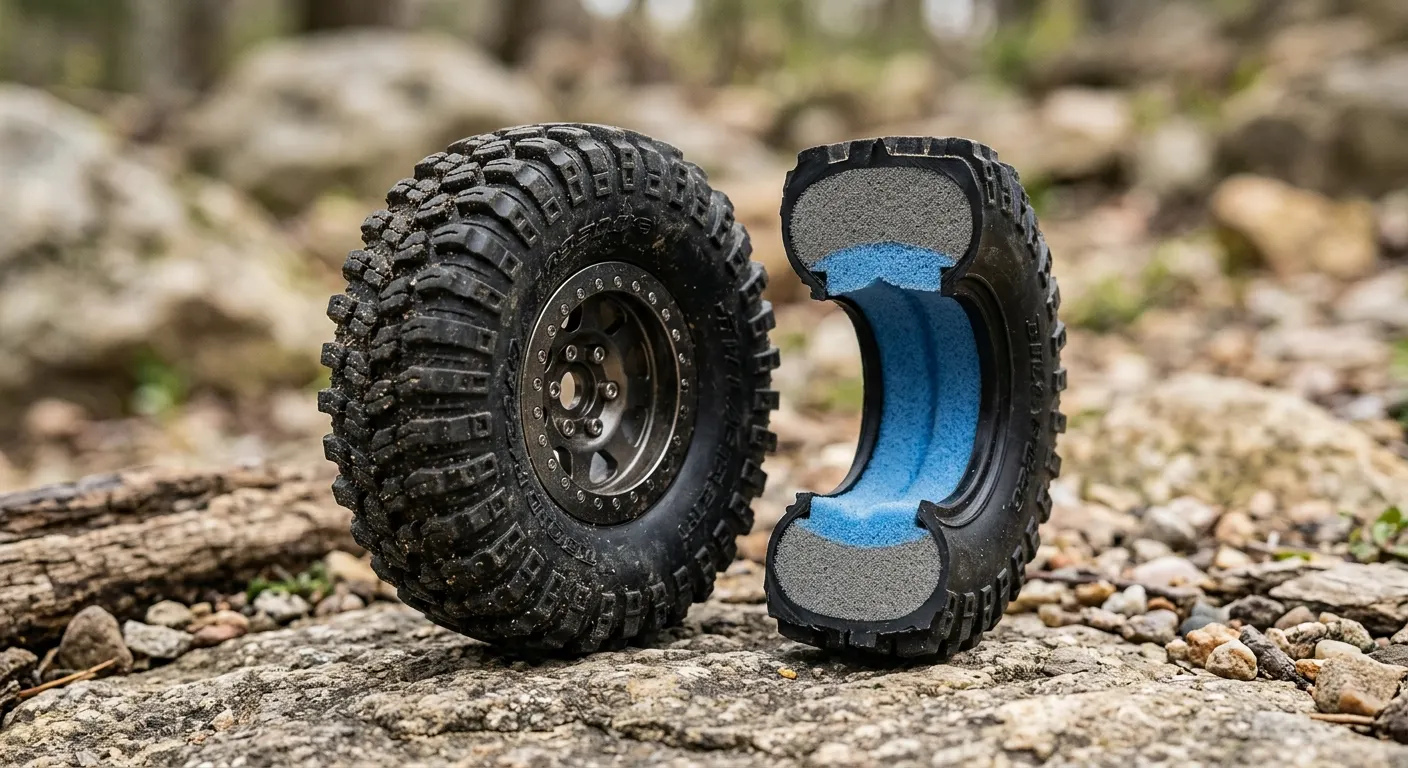

The tire tread decides how much rubber contacts the rock, but the foam insert decides whether that tread holds its shape when you actually load it, and the Pro-Line Closed Cell Foam Inserts 1.9 (pair) solve a problem a great tread alone cannot fix: sidewall collapse on off-camber terrain. Per Pro-Line's own product listing, the closed-cell foam resists compression better than the open-cell foam most tires ship with under lateral load.
On a steep side hill, weight shifts onto the downhill sidewall. A soft insert lets that sidewall fold inward, which changes the tire's footprint mid-obstacle and makes the rig feel unpredictable exactly when you need it to be planted. A firm closed-cell insert holds the sidewall shape so the tread stays in contact with the rock the way it was designed to.
The trade-off is rock wrap. A firmer insert reduces how much the tread deforms and wraps around small ledges compared to a softer stock insert, so closed-cell foam is a deliberate choice for side-hill-heavy trails, not a universal upgrade for every crawler. Sizing also matters: insert inner diameter has to match the specific tire brand you are running, since Pro-Line, JConcepts, and Injora do not share identical carcass dimensions.
Pro-Line Closed Cell Foam Inserts 1.9 (pair)
Firm closed-cell inserts that add sidewall support and prevent the tire from folding under side loads on steep off-camber sections. Sized for standard 1.9 inch crawler tires.
Which tread pattern suits mud, rock, or a scale look?
The JConcepts Fling King 1.9 Crawler Tires Green Compound (pair) is the mud specialist in this lineup. Its widely spaced mega lugs fling loose dirt and mud out of the contact patch instead of packing it in the way a tighter tread does, and the green super-soft compound adds extra bite on wet rock. It also ships with foam inserts already in the box, so it is a ready-to-mount option if you are not ready to buy inserts separately.
The JConcepts Bounty Hunter 1.9 Scale Crawler Tires (pair) is the all-rounder at a lower price than the Fling King. Its dual-angular mirrored center lugs grip in multiple directions, which makes it a reasonable single tire for a rig that sees mixed rock, dirt, and light mud rather than one extreme terrain type.
For builders who care as much about looks as traction, the RC4WD Interco Super Swamper TSL Bogger 1.9 Scale Tires (pair) replicates the full-size Interco Super Swamper TSL tread and is the tallest tire in the 1.9 class, which adds visible ground clearance on top of the scale accuracy. It is a strong choice for a display-worthy trail rig, with the reinforced sidewall trade-off noted above.
JConcepts Fling King 1.9 Crawler Tires Green Compound (pair)
The mega-lug mud specialist in JConcepts green super-soft compound. Designed to throw loose material and dig into soft terrain where smaller treads pack with mud.
JConcepts Bounty Hunter 1.9 Scale Crawler Tires (pair)
Class 1 tire with a dual-angular mirrored center lug combination for bite on rock and traction in loose material. A strong all-rounder just below the price of the Fling King.
RC4WD Interco Super Swamper TSL Bogger 1.9 Scale Tires (pair)
Licensed replica of the full-size Super Swamper Bogger in X3 soft compound. The tallest tire in the 1.9 class and a scale showpiece as much as a performance option.
How do you match insert firmness to tire compound and terrain?
Pairing a soft compound tire like the INJORA King Trekker 1.9 Crawler Tires S5 Compound (pair) with a firmer insert such as the Pro-Line Closed Cell Foam Inserts 1.9 (pair) gives you a tread that grips without a sidewall that folds on steep side hills, which is the balance most trail crawlers are actually chasing rather than chasing compound softness alone.
If your tire already shipped with foam, like the JConcepts Fling King 1.9 Crawler Tires Green Compound (pair) does, there is no need to buy an insert immediately. Run the stock foam for a session or two and pay attention to whether the sidewall folds on off-camber sections specifically. That is the signal to upgrade to a closed-cell insert, not a fixed mileage or time interval.
A useful rule of thumb for a first-time buyer: soft compound plus soft terrain (mud, loose dirt) can run the stock open-cell foam that ships in the box. Soft compound plus technical rock with real off-camber sections is where a closed-cell insert earns its keep. Firm compound tires on rock generally need the insert less because the compound itself resists folding.
Pro-Line Closed Cell Foam Inserts 1.9 (pair)
Firm closed-cell inserts that add sidewall support and prevent the tire from folding under side loads on steep off-camber sections. Sized for standard 1.9 inch crawler tires.
INJORA King Trekker 1.9 Crawler Tires S5 Compound (pair)
INJORA's S5 super-soft compound in an all-terrain tread with multi-curve siping for grip on loose dirt and slippery rock faces. A strong value import option.
Should you upgrade wheel weight while the tires are off?
Once the wheels are off to swap tires and inserts, the INJORA Brass Inner Clamp Rings for 1.9 Bead Lock Wheels (set of 4) are worth adding at the same time. The set replaces the stock aluminum or plastic inner ring in a 1.9 bead lock wheel with CNC-machined brass, which adds meaningful mass right at the lowest point of the rig rather than higher up the chassis where weight actually hurts stability.
Lowering center of gravity this way is one of the most competition-legal tuning methods available, since it does not touch suspension geometry or add external ballast plates. It pairs naturally with this job specifically because the wheels are already disassembled for the tire and insert swap, so there is no extra teardown cost to add it.
The one compatibility note: brass inner clamp rings only fit bead lock wheel designs with a replaceable inner ring, so confirm your wheel style supports the swap before ordering. They also add rotating mass, which a brushed motor feels more than a brushless one under acceleration.
INJORA Brass Inner Clamp Rings for 1.9 Bead Lock Wheels (set of 4)
CNC-machined brass inner rings that replace the stock aluminum or plastic clamp rings in 1.9 bead lock wheels. Each ring adds meaningful mass at the lowest point of the rig for lower CG.
Pro-Line Hyrax 1.9 G8 Rock Crawling Tires (pair)
The default benchmark for 1.9 inch rock crawling. Open tread with deep sipes and G8 compound that grips rock faces without the squirm of pure competition rubber.
Pro-Line Closed Cell Foam Inserts 1.9 (pair)
Firm closed-cell inserts that add sidewall support and prevent the tire from folding under side loads on steep off-camber sections. Sized for standard 1.9 inch crawler tires.
INJORA King Trekker 1.9 Crawler Tires S5 Compound (pair)
INJORA's S5 super-soft compound in an all-terrain tread with multi-curve siping for grip on loose dirt and slippery rock faces. A strong value import option.
JConcepts Fling King 1.9 Crawler Tires Green Compound (pair)
The mega-lug mud specialist in JConcepts green super-soft compound. Designed to throw loose material and dig into soft terrain where smaller treads pack with mud.
INJORA Brass Inner Clamp Rings for 1.9 Bead Lock Wheels (set of 4)
CNC-machined brass inner rings that replace the stock aluminum or plastic clamp rings in 1.9 bead lock wheels. Each ring adds meaningful mass at the lowest point of the rig for lower CG.
FAQ
Frequently asked questions
What foam insert should I use for steep, off-camber rock crawling?+
A closed-cell foam insert, like the Pro-Line Closed Cell Foam Inserts 1.9, resists compression better than the open-cell foam most tires ship with under lateral load. That keeps the sidewall from folding when weight shifts onto the downhill tire on a side hill. The trade-off is slightly less tread wrap around small ledges compared to softer stock foam, so it is the right call for off-camber-heavy trails specifically, not every build.
Do 1.9 inch and 2.2 inch tires use different foam inserts?+
Yes. Insert inner diameter has to match the bead diameter of the tire and wheel class it is going into. A 1.9 insert will not properly fill a 2.2 tire carcass like the Pro-Line Hyrax 2.2 G8, and using the wrong size defeats the purpose of the insert. Always buy the insert sized to the specific tire and wheel class you are running.
Does tire compound matter more than tread pattern?+
They solve different problems. Compound, like Pro-Line's G8 or Injora's S5, controls how much the rubber grips a given surface and how it deforms under load. Tread pattern controls how the tire clears mud and loose material and how it wraps rock edges. A soft compound tire with a tight tread can still pack out in mud, and an aggressive mud tread in a firm compound can still feel harsh on flat rock. Both decisions matter together with the insert underneath.
Can I run brass inner clamp rings with any bead lock wheel?+
Only with bead lock wheel designs that have a replaceable inner ring, since the Injora Brass Inner Clamp Rings are made to drop into that specific slot. Confirm your wheel design supports a removable inner ring before ordering. They also add rotating mass at the wheel, which a brushed motor setup feels more under acceleration than a brushless one does.
Do I still need a foam insert if the tire already ships with one?+
Not immediately. Tires like the JConcepts Fling King ship with foam already installed, so there is no need to buy an insert on day one. Run the stock foam and watch for sidewall folding specifically on off-camber sections. If that shows up, upgrading to a firmer closed-cell insert like the Pro-Line Closed Cell Foam Inserts 1.9 is the fix, not a tire swap.
